Site plans
Permit-ready septic site plans without CAD overhead
Build septic site plans from parcel context, add tanks, fields, reserve areas, structures, and labels, check setbacks, and export permit-ready PDFs.

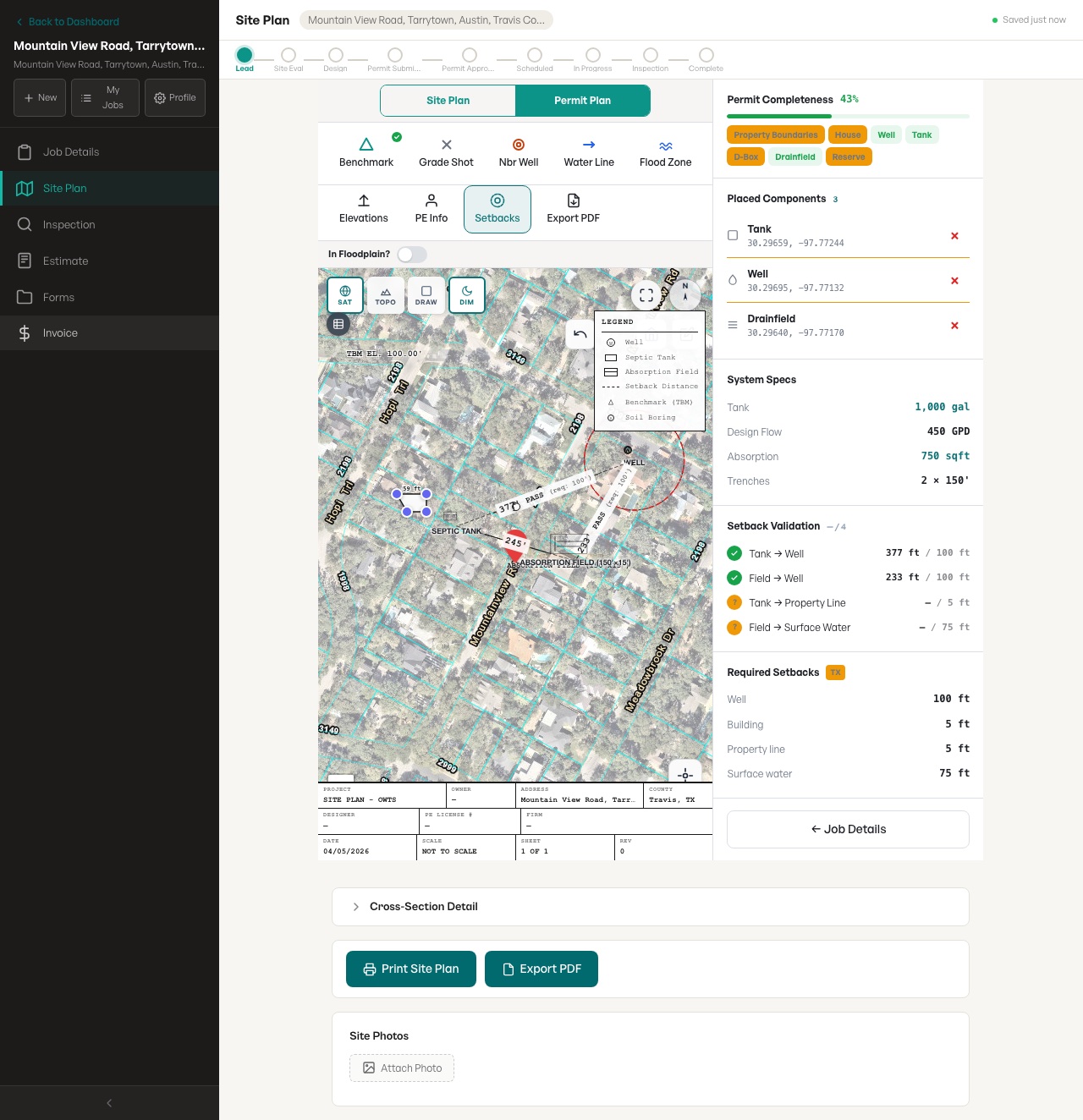

Actual product screenshot
The public page uses a real SepticPro test-job screenshot showing the site-plan canvas, parcel imagery, contour context, placed septic components, setback validation, and export controls.
- Visible context
- Parcel lines, aerial imagery, topo contours, north arrow, and legend
- Placed objects
- Tank, well, drainfield, property boundary, and permit completeness chips
- Limits
- Contractor review and any county-required licensed approval still apply
What this page covers
- Parcel-aware drawing canvas
- Drag-and-drop septic components
- Live setback checks and clean PDF export
Search topics
- septic site plan software
- permit-ready septic site plans
- septic drawing tool
- septic setback checks
Related septic contractor workflows
Frequently asked questions
Can SepticPro create permit-ready septic site plans?
Yes. SepticPro helps contractors draft parcel-aware septic site plans with components, labels, setbacks, and PDF exports for permit packets.
How do I make a septic site plan in SepticPro?
Enter the property address or GPS coordinates, and the parcel number if you have it. The parcel, aerial imagery and contours load on the map; you place the house, tank, distribution box, drainfield and reserve area, setbacks are checked as you draw, and you download a to-scale permit PDF.
How much does a septic site plan cost in SepticPro?
Drawing is free. A finished, permit-ready site plan is $25 to download on Pay per plan, or unlimited plans are $99 per month. Every account starts with a free 14-day trial.
Does SepticPro replace an engineer?
No. SepticPro helps prepare clean plan documents and checks, but counties may still require a licensed designer, engineer, or official approval.
